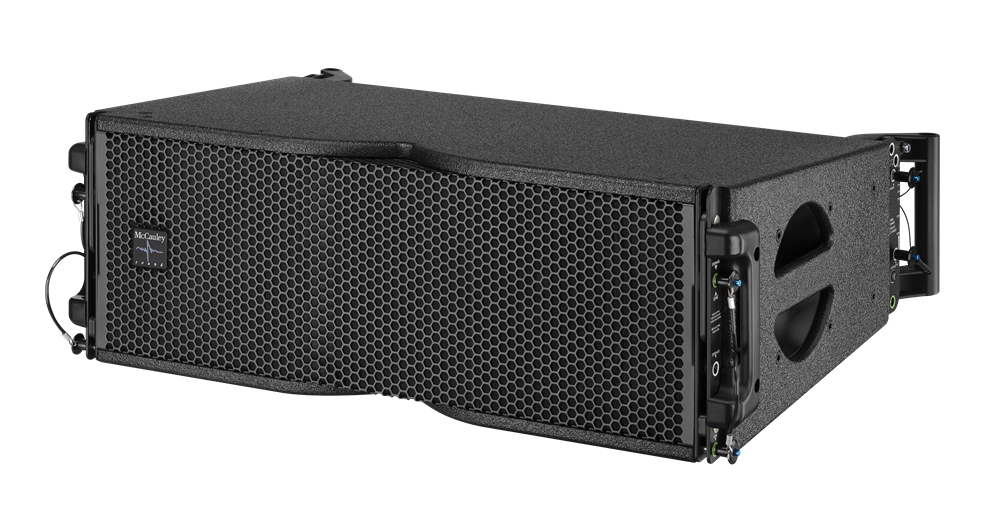

McCauley N120 is a compact linear array speaker, characterized by its small size and lightweight design. It features a high-quality high-frequency driver combined with a dedicated waveguide and horn, delivering clear sound and precise coverage. The enclosure is constructed from multi-ply birch plywood, making it suitable for both touring and fixed installations. The system also supports adjustable data for digital processors and comes with adjustable rigging hardware for array deployment.
McCauley N120 is a compact linear array speaker, characterized by its small size and lightweight design. It features a high-quality high-frequency driver combined with a dedicated waveguide and horn, delivering clear sound and precise coverage. The enclosure is constructed from multi-ply birch plywood, making it suitable for both touring and fixed installations. The system also supports adjustable data for digital processors and comes with adjustable rigging hardware for array deployment.
Applications:
Bar sound reinforcement, concerts, theaters, indoor and outdoor performances, fixed installation in indoor auditoriums, stadiums, and other venues.
Rated Power: LF:400W；HF:100W
Sensitivity(1w/1m): LF:94dB；HF:109dB
Nominal Directivity (-6 dB): 110°(Horizontal); 0-10° (Vertical, adjustable)
Frequency Response(±5dB): LF:70Hz-3KHz； HF:800Hz-18KHz
Nominal Impedance:8 0hm；
High-Frequency Driver: 1x1.4"/ 3"(75mm)
Low-Frequency Driver: 2x8” / 2" (51mm)
Maximum SPL:LF:127/135dB

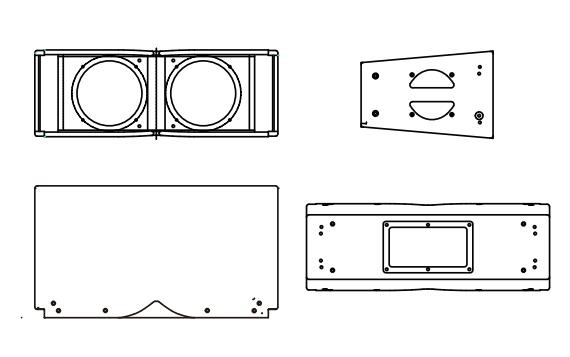

Dimensions (W x D x H): 693mm x 385mm x 247.3mm
Cabinet Color：Black；Grille Color：Black fabric
Weight: 31kg
Wiring Type 2*NL4MP
