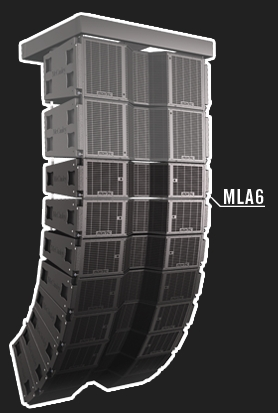

The MLA6 is McCauley Sound's flagship line array system. The MLA6 is a low-profile,

axially symmetrical, three-way large-format line array module based on McCauley Sound’s revolutionary MONARC™ line array technology.

Engineered to deliver high definition, high SPL sound reinforcement for a broad range of applications, including concert / touring sound and

mixed-media corporate events, the MONARC™ MLA6 offers sound designers the ideal tool for creating precision coverage zones of acoustically

 accurate, tonally superior sound reproduction. Brilliant technologies like the Intercell Summation Aperture™, which creates a perfectly coherent

and uniform wide-band wavefront, while reducing distortion to near-zero levels, make the MONARC™ MLA6 the most precise and acoustically

transparent large-format line array system on the market. At the same time, MLA6's MONARC™ Integrated Rigging System provides operators

 with the simplest, most flexible and easiest way to fly or stack a line array the industry has ever know.

The MLA6 is a 3-way full range line array module in a computer optimized enclosure. The MLA6houses twin volumetircally loaded 15" Neodymium

cone drivers, twin 10" HX32 Neodymium midrange cone drivers, and twin 2" Neodymium high frequency compression drivers. The enclosure is

 constructed of durable 12-ply void-free birch laminate, dadoed for strength and durability. All MONARC™ modules ship with an advanced integrated

rigging system with all necessary rigging hardware self-contined to the enclosure. This system allows an array to be flown quickly and easily,

or in the case where rigging is not approriate, this same rigging system allows the cells to form ground stack arrays. Perforated steel is employed

 for frontal protection of the loud speaker complement. An integrated castor board package is included to aid transport.

FEATURE SUMMARY

Adaptive Density Inverse Flat Lense
HX32 Honey-Comb Nomex Composite Midrange
InterCell Summation Aperature
Lightwieght Neodymium Complement
Volumetrically Loaded LF Section
Low Profile Cell Design
MONARC Integrated Rigging System
Quick Release Grill
Dual Neutrik NL8 Connectors
Ergonomically-placed handles
Arrayable Pattern
McCauley Performance Class Componentry
Perforated Steel Grill
12-Ply Dadoed Construction
Durable ProCoat Elastomeric Finish

Performance Overview

 Class     Full Range

 Coverage     90°

 Freq. Response (-3dB)     45Hz - 18kHz

 Low Freq. Response (-10dB)     40Hz

 Power Handling (Program)

  Low (1)     1000W

  Low (2)     1000W

 Mid     800W

 High     320W

 Power Handling (AES)

 Low (1)     500W

 Low (2)     500W

 Mid     400W

 High     160W

 Max Peak SPL

 Low     143dB

 Mid     139dB

 High     146dB

 Max Continuous SPL

 Low     137dB

 Mid     133dB

 High     140dB

 Impedance

 Low (1)     8Ω

 Low (2)     8Ω

 Mid     8Ω

 High     8Ω

 Sensitivity

 Low     104dB

 Mid     104dB

 High     115dB

 Critical Filter / Crossover Data

 Crossover Low     220Hz

 Bandpass     232Hz - 1.586kHz

 Crossover High     1.662kHz

 Construction

 Method     CNC Machined, Dadoed

 Material     12-Ply Birch

 Finish     All-Weather, Procoat

 Dimensions

 Product Dimensions     58in. x 14in. x 28in.

                                     1473.2mm x 355.6mm x 711.2mm

 Net Weight      199lbs.

                         90.25kg.

 Shipping Dimensions     63in. x 36in. x 19in.

                                       1600.2mm x 914.4mm x 482.6mm

 Shipping Weight     215lbs.

                                97.51kg.

 Taper Angle     5°

 Taper Width     9.1in.

                         231.14mm

 Design Properties

 Characteristics     3-Way, Line Array, Mid-Throw, Long-Throw, Vented, Compression Driver, Cone Driver

 Powering Options     Tri-Amp

 Transportation Options     Caster Board

 Hardware

 Connectors     NL8

 Grill Type     Acoustically Transparent Foam, Fitted

                     Perforated Steel

 Handle Type     Handle Designed into Enclosure

 Handle Locations     Left, Right, Back

 Suspension     MONARC Integrated Rigging System
