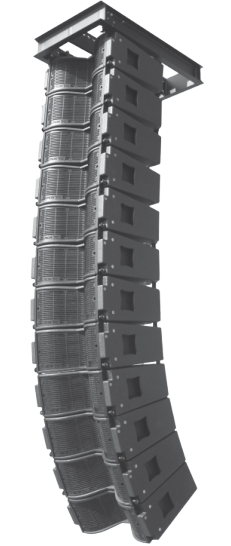

The MLA2 is a low-profile, axisymmetric, two-way mid-size line array module based on McCauley Sound’s revolutionary MONARC™

 line array technology. Engineered to deliver high definition, high SPL sound reinforcement for a broad range of applications,

 including concert / touring sound and mixed-media corporate events, the MONARC™ MLA2 offers sound designers the ideal tool

 for creating precision coverage zones of acoustically accurate, tonally superior sound reproduction. Brilliant technologies like the

 Intercell Summation Aperture™, which creates a perfectly coherent and uniform wide-band wavefront, while reducing distortion to

 near-zero levels, make the MONARC™ MLA2 the most precise and acoustically transparent line array system on the market.

At the same time, MLA2’s MONARC™ Integrated Rigging System provides operators with the simplest, most flexible and easiest way

to fly or stack a line array the industry has ever know.

The MLA2 is a 2-way full range line array module in a computer optimized enclosure. The MLA2 houses twin 8" HX32 midrange cone drivers,

and two high frequency compression drivers. The enclosure is constructed of durable 12-ply void-free birch laminate, dadoed for strength

and durability. All MONARC™ modules ship with an advanced integrated rigging system with all necessary rigging hardware self-contined

 to the enclosure. This system allows an array to be flown quickly and easily, or in the case where rigging is not approriate, this same rigging

system allows the cells to form ground stack arrays. Perforated steel is employed for frontal protection of the loud speaker complement.

The MCB2 integrated castor board package is necessary to facilitate rigging and to aid transport.

FEATURES AND ADVANCES

• Seamless Vertical Coverage

• Consistent 100o Horizontal Beamwidth

• Ultra-Low Distortion Midrange via HX32™ Drivers

• Effortless Integrated Rigging and Transportation

• Extreme Waterproofing

APPLICATIONS

• Performing Arts Centers

• House of Worship Installation

• Touring Sound Reinforcement for Medium Sized Venues

• Sidefill and Downfill for MLA3 and MLA

Performance Overview

 Class     Full Range

  Coverage     100°

 Freq. Response (-3dB)     80Hz - 18kHz

 Low Freq. Response (-10dB)     60Hz

 Power Handling (Program)

  Low     800W

 High     200W

   Power Handling (AES)

 Low     400W

 High     100W

 Max Peak SPL

 Low     136dB

 High     139dB

 Max Continuous SPL

 Low     130dB

 High     133dB

 Impedance

 Low     8Ω

 High     8Ω

 Sensitivity

 Low     101dB

 High     110dB

 Critical Filter / Crossover Data

 Bandpass     80Hz - 1.5kHz

 Crossover High     1.5kHz

 Construction

 Method     CNC Machined, Dadoed, Hand Finished, Rabbet

 Material     12-Ply Birch

 Finish     Procoat

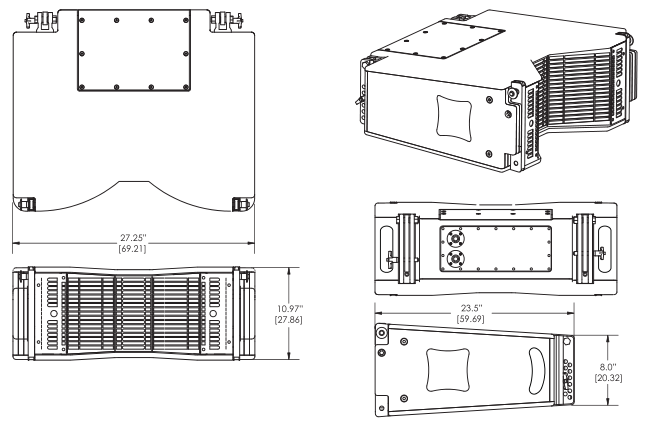

 Dimensions

 Product Dimensions     27.17in. x 10.96in. x 24.6in.

                                      690.12mm x 278.38mm x 624.84mm

 Net Weight     85lbs.

                        38.6kg.

 Shipping Dimensions     32.25in. x 14in. x 32in.

                                        819.15mm x 355.6mm x 812.8mm

 Shipping Weight     105lbs.

                               47.62kg.

 Taper Angle      3.5°

 Taper Width      8.125in.

                          206.38mm

 Design Properties

 Characteristics     2-Way, Line Array, Vented

 Powering Options     Bi-Amp, Drivers Wired in Parrallel

 Transportation Options     Caster Board

 Hardware

 Connectors     NL8

 Grill Type     Acoustically Transparent Foam, Fitted Perforated Steel, Cam-Lock Quick Release

 Handle Type     Handle Designed into Enclosure

 Handle Locations     Left, Right, Back

 Suspension     MONARC Integrated Rigging System
