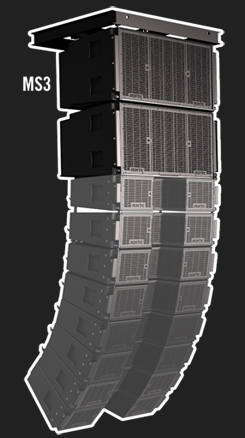

The MS3 is a flown subwoofer module designed to accompany McCauley Sound's mid-sizeline array system, the MLA3.

The MS3 is a low-profile, axially symmetrical, quad 15" mid-size line array subwoofer module. The MS3 shares the same MONARC™

 Integrated Rigging System with the MONARC MLA3, providing operators with the simplest, most flexible and easiest way to fly or stack

a line array the industry has ever know. The quad 15" design provides incredible punch in either flown or stacked configurations.

The MS3 is a line array low frequency subwoofer module in a computer optimized enclosure. The MS3 houses quad volumetrically loaded

15" Neodymium cone drivers. The enclosure is constructed of durable 12-ply void-free birch laminate, dadoed for strength and durability.

 All MONARC™ modules ship with an advanced integrated rigging system with all necessary rigging hardware self-contined to the enclosure.

This system allows an array to be flown quickly and easily, or in the case where rigging is not approriate, this same rigging system allows

 the cells to form ground stack arrays. Perforated steel is employed for frontal protection of the loud speaker complement. An integrated

castor board package is necessary to faciliate system rigging in flown appications.

FEATURE SUMMARY

Coupling LF Design

Lightwieght Neodymium Complement
Volumetrically Loaded LF Section
Quick Release Grill
Dual Neutrik NL8 Connectors
Ergonomically-placed handles
McCauley Performance Class Componentry
Perforated Steel Grill
12-Ply Dadoed Construction
Durable ProCoat Elastomeric Finish

 Performance Overview

 Class     Subwoofer

 Freq. Response (-3dB)     52Hz - 225Hz

 Low Freq. Response (-10dB)     35Hz

 Power Handling (Program)

 Low (1)     900W

 Low (2)     900W

 Low (3)     900W

 Low (4)     900W

 Power Handling (AES)

 Low (1)     400W

 Low (2)     400W

 Low (3)     400W

 Low (4)     400W

 Max Peak SPL

 Low     143.5dB

 Max Continuous SPL

 Low     137.5dB

 Impedance

 Low (1)     8Ω

 Low (2)     8Ω

 Low (3)     8Ω

 Low (4)     8Ω

 Sensitivity

 Low (1)     102dB

 Low (2)     102dB

 Low (3)     102dB

 Low (4)     102dB

 Critical Filter / Crossover Data

 Bandpass     95Hz

 Construction

 Method     CNC Machined, Dadoed, Rabbet

 Material     12-Ply Birch

 Finish     All-Weather, Procoat

 Dimensions

 Product Dimensions      46.87in. x 22.5in. x 30.5in.

                                       1190.5mm x 571.5mm x 774.7mm

 Net Weight      215lbs.

                         97.51kg.

 Shipping Dimensions      52in. x 35in. x 36in.

                                         1320.8mm x 889mm x 914.4mm

 Shipping Weight     232lbs.

                                 105.22kg.

 Taper Angle     3.5°

 Design Properties

 Characteristics           Line Array, Vented

 Powering Options      Drivers Wired Individually

 Transportation Options     Caster Board

 Hardware

 Connectors     NL8

 Grill Type     Acoustically Transparent Foam, Fitted

                     Perforated Steel, Cam-Lock Quick Release

 Handle Type     Handle Designed into Enclosure

 Handle Locations     Left, Right, Back

 Suspension     MONARC Integrated Rigging System
