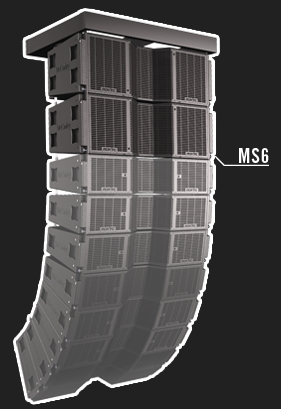

The MS6 is a flown subwoofer module designed to accompany McCauley Sound's flagship line array system, the MLA5.

The MS6 is a low-profile, axially symmetrical, dual 18" large-format line array subwoofer module. The MS6 shares the same

MONARC™ Integrated Rigging System with the MONARC MLA6, providing operators with the simplest, most flexible and easiest

way to fly or stack a line array the industry has ever know.

The MS6 is a line array subwoofer module in a computer optimized enclosure. The MS6 houses twin volumetircally direct radiating 18"

 Neodymium cone drivers. The enclosure is constructed of durable 12-ply void-free birch laminate, dadoed for strength and durability.

All MONARC™ modules ship with an advanced integrated rigging system with all necessary rigging hardware self-contined to the enclosure

This system allows an array to be flown quickly and easily, or in the case where rigging is not approriate, this same rigging system allows

the cells to form ground stack arrays. Perforated steel is employed for frontal protection of the loud speaker complement. An integrated castor

 board package is included to aid transport.

FEATURE SUMMARY

Coupling LF Design
Lightwieght Neodymium Complement
MONARC Integrated Rigging System
Quick Release Grill
Dual Neutrik NL4 Connectors
McCauley Performance Class Componentry
Perforated Steel Grill
12-Ply Dadoed Construction

Performance Overview

 Class     Subwoofer

 Power Handling (Program)

  Low (1)     1000W

 Low (2)     1000W

 Max Peak SPL

 Low     140.01dB

 Max Continuous SPL

 Low     134.01dB

 Impedance

 Low (1)     8Ω

 Low (2)     8Ω

 Sensitivity

 Low     101dB

 Construction

 Method     CNC Machined, Dadoed

 Material     12-Ply Birch

 Finish     All-Weather, Procoat

 Dimensions

 Product Dimensions     58in. x 20.94in. x 36in.

                                     1473.2mm x 531.88mm x 914.4mm

 Net Weight     215lbs.

                        97.51kg.

 Shipping Dimensions     0in. x 0in. x 0in.

0mm x 0mm x 0mm

 Shipping Weight     232lbs.

                               105.22kg.

 Taper Angle     5°

 Taper Width     14.69in.

                        373.13mm

 Design Properties

 Characteristics     Line Array, Mid-Throw, Long-Throw, Cone

                              Driver, Direct Radiating

 Transportation Options     Caster Board

 Hardware

 Connectors     NL4

 Grill Type     Acoustically Transparent Foam, Fitted

                     Perforated Steel

 Handle Type             Handle Designed into Enclosure

 Handle Locations     Left, Right, Back

 Suspension             MONARC Integrated Rigging System
