McCauley AC12is a high-quality two-way full-range loudspeaker with a compact enclosure and powerful sound pressure output. It delivers excellent tonal quality and clear vocal reproduction, even at a maximum SPL of 123dB at 1 meter. This compact speaker features a 12-inch (75mm) woofer and a 1.75-inch (44mm) tweeter, capable of handling 400 watts of power, delivering surprisingly powerful and dynamic impact. The AC12 can be used in either vertical or horizontal orientation. Its 90° × 70° constant-directivity horn ensures even high-frequency coverage that adapts well to the speaker's placement. When mounted close to walls or ceilings, the optimally designed bass reflex port in the compact trapezoidal enclosure allows the AC12 to produce impressive low-frequency response without the need for additional subwoofers. The enclosure is constructed from 15mm multi-ply composite plywood, and is equipped with M8 threaded inserts for rigging and installation using eyebolts

Product Features

Passive two-way system speaker Suitable for main sound reinforcement and stage monitoring applications

Selectable vertical or horizontal placement Selectable vertical or horizontal placement Perforated steel grille with protective foam mesh

Trapezoidal enclosure with textured finish

 8Ω nominal impedance

 Dual NL4 connectors

Multiple M8 rigging points for suspension

Applications

For advanced karaoke rooms, lounge bars with sub-bass playback requirements

Multi-purpose halls, high-end hotel clubs

Portable live sound applications, band sound reinforcement

High-Frequency Driver::1 "/ 1.7"(44mm)

Low-Frequency Driver:12"/ 3"( 75mm)

Frequency Respons:   55Hz-18KHz

Sensitivity:  98dB

Maximum Sound Pressure Level (SPL):   130dB

Impedance:    8Ω

Rated Power:   400W   (AES)

Peak Power:   1600W (PEAK)

Dispersion Angle: 90°（W ）×70°(H)

Finish: Matte Black Paint

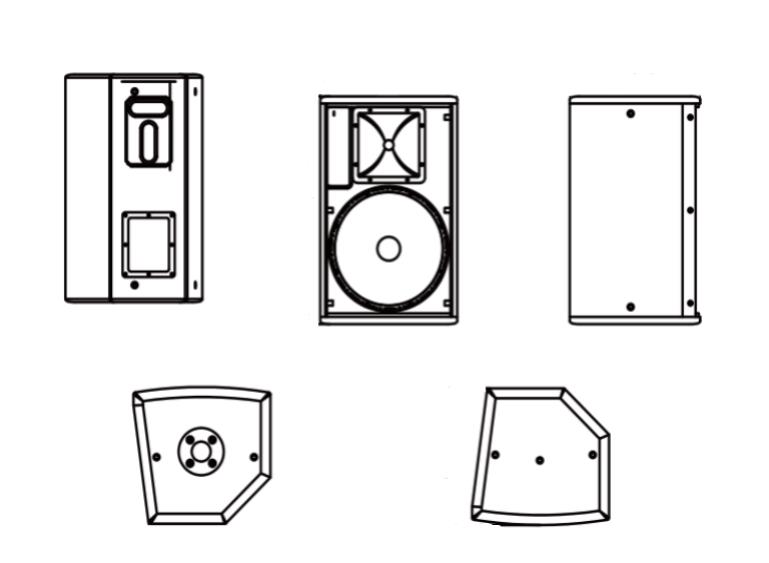

Cabinet Dimensions:365mm(W)×580mm(H)345mm(D)

Weight:   23kg
