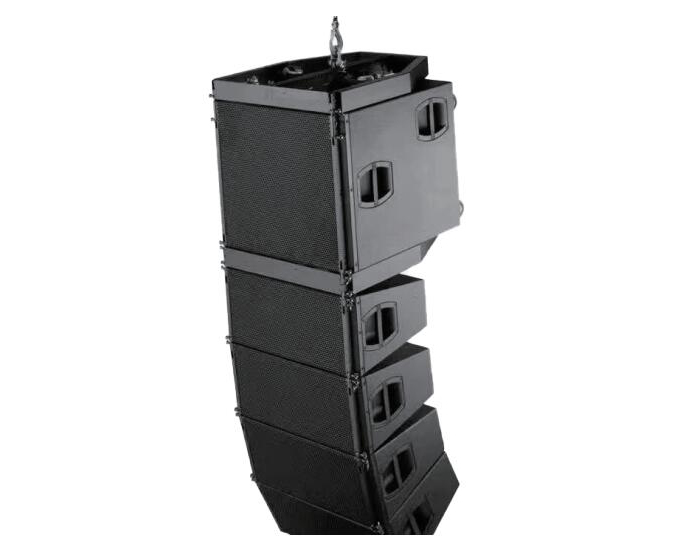

McCauley M210 is a self-contained three-way driven loudspeaker system utilizing Waveform technology, offering excellent long-throw performance, high clarity, and precise coverage. It features a quick-install three-point rigging system and a durable multi-ply birch plywood enclosure, making it ideal for both touring and fixed installations. The system supports adjustable data for digital processors and comes with adjustable rigging hardware for array deployment.
McCauley M210 is a self-contained three-way driven loudspeaker system utilizing Waveform technology, offering excellent long-throw performance, high clarity, and precise coverage. It features a quick-install three-point rigging system and a durable
multi-ply birch plywood enclosure, making it ideal for both touring and fixed installations. The system supports adjustable data for digital processors and comes with adjustable rigging hardware for array deployment.
Applications:
Bar sound reinforcement, concerts, theaters, indoor and outdoor performances, fixed installation in indoor auditoriums, stadiums, and other venues.
Rated/Peak Power: 800/3200W;
Sensitivity(1w/1m): 111dB;
Nominal Directivity(-6 dB):80°/120°(Horizontal);0-10°(Vertically adjustable)
Frequency Response(±5dB): 67Hz--18KHz;
Unit Configuration：
High-frequency unit: 2x1.4" / 2.5" (65mm), Power: 160W, Impedance: 8 Ohm
Mid-frequency unit: 1x8" / 2.5" (65mm), Power: 200W, Impedance: 8 Ohm
Low-frequency unit:2x10" / 2.5" (65mm), Power: 500W, Impedance: 8 Ohm
Maximum Sound Pressure Level:139 / 142 dB

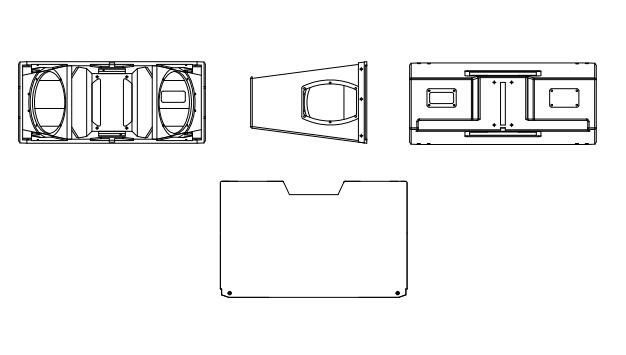

Dimensions (W x D x H)700mmx460 mmx310mm
Cabinet Color：Black；Grille Color：Black fabric
Weight: 34kg
Wiring Type 2*NL8MP
