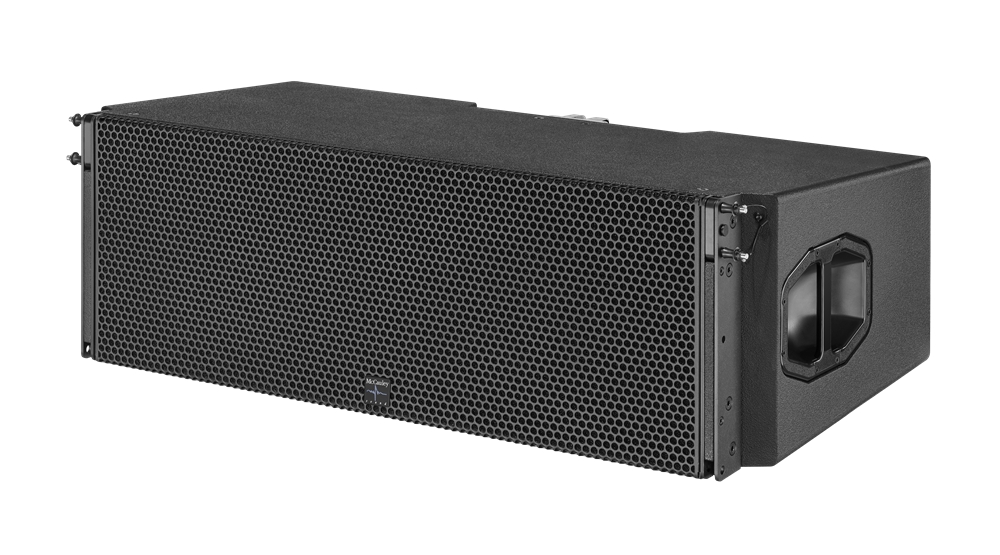

MCCAULEY  M212 Dual 12" 3-Way, High-Performance Passive Tri-Axial Line Array Speaker, Independent Tri-Drive, Waveform Technology Sound Reinforcement System, Excellent Long-Throw Capability, High Clarity, Precise Coverage. Three-Point Suspension System for Quick Installation, Multi-Layer Birch Plywood Cabinet, Suitable for Touring and Fixed Installations, Dedicated Adjustable Data for Digital Processors, Adjustable Array Suspension Components for Coverage Optimization

Applications:

Bar sound reinforcement, concerts, theaters, indoor and outdoor performances, fixed installation in indoor auditoriums, stadiums, and other venues.

Rated/Peak Power: 1300/5200W;

Sensitivity(1w/1m): 112dB;

Nominal Directivity(-6 dB): 80°/120°(Horizontal);0-7°(Vertically adjustable)

 Frequency Response(±5dB): 48Hz--17KHz;

Unit Configuration：

High-frequency unit:2x1.4"/ 3"(75mm), Power：200W,Impedance:：16 Ohm;

Mid-frequency unit:1x10"/ 3"(75mm）,Power：300W, Impedance：8 Ohm;

Low-frequency unit1:1x12"/ 3"(75mm）,Power：400W, Impedance：12 Ohm;

 Low-frequency unit2:1x12"/ 3"(75mm）,Power：400W, Impedance：12 Ohm;

 Maximum Sound Pressure Level:139/145 dB

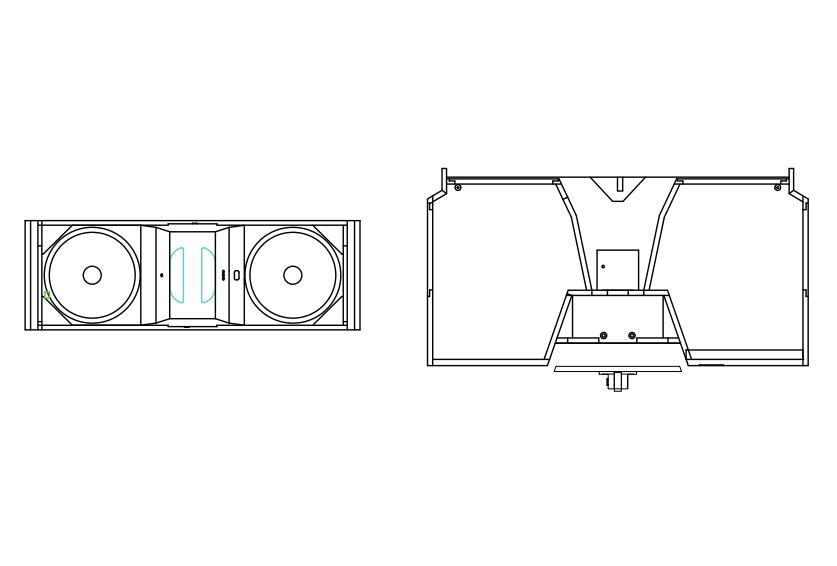

Dimensions (W x D x H): 1100mmx570mm x 360mm

Cabinet Color：Black；Grille Color：Black fabric

Weight: 58kg

Wiring Type  2*NL8MP
